2.5 Ton Packaged Air Conditioner | Trane 14.0 SEER2, Single-Stage, R-454B | 5TCC4030A1000

Name: 2.5 Ton Packaged Air Conditioner | Trane 14.0 SEER2, Single-Stage, R-454B | 5TCC4030A1000
Brand: Trane
SKU: F001035
Price: 6176.99 USD
Availability: InStock

Trane

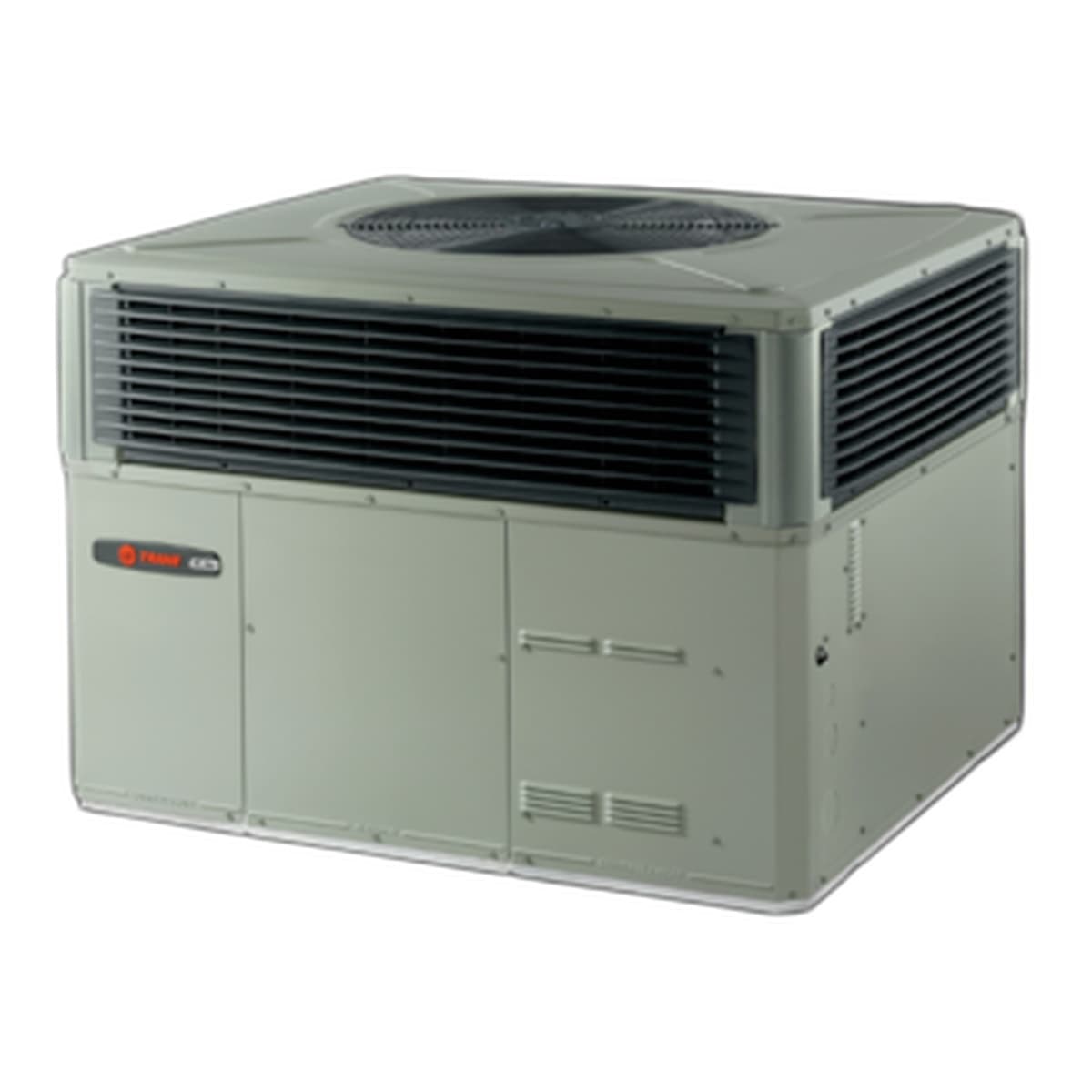

This 2.5 ton packaged air conditioner (14.0 SEER2, Single-Stage) is a self-contained cooling unit — compressor, coil and blower in one outdoor cabinet, connected to the building by ductwork alone.…

SKU: F001035MPN: 5TCC4030A1000

$6,176.99

Free shipping on orders over $75.00

30-day hassle-free returns

Secure checkout

Specifications

AHRI Reference #: 216574874
Airflow: 920 CFM
Coil Construction: 4 / 15
Coil Type: RTPF
Compressor: P
Cooling Capacity: 28,400 BTU/h
EER2: 11.0
Efficiency: 11.0 / 14.0
Max Fuse / Breaker: 30 A
Min. Circuit Ampacity: 21 A
Model Number: 5TCC4030A1000
Nominal Capacity: 2.5 Tons
Operating Weight: 380 lbs
Product Type: Packaged AC
Refrigerant: R-454B (A2L)
Refrigerant Charge: 7.0
SEER2: 14.0
Series: 5TCC4
Shipping Weight: 454 lbs

This 2.5 ton packaged air conditioner (14.0 SEER2, Single-Stage) is a self-contained cooling unit — compressor, coil and blower in one outdoor cabinet, connected to the building by ductwork alone.

Full specifications and installation literature are published by Trane: Trane product information.

Questions on sizing or matching? Contact us before ordering and we'll confirm the right configuration for your system.
