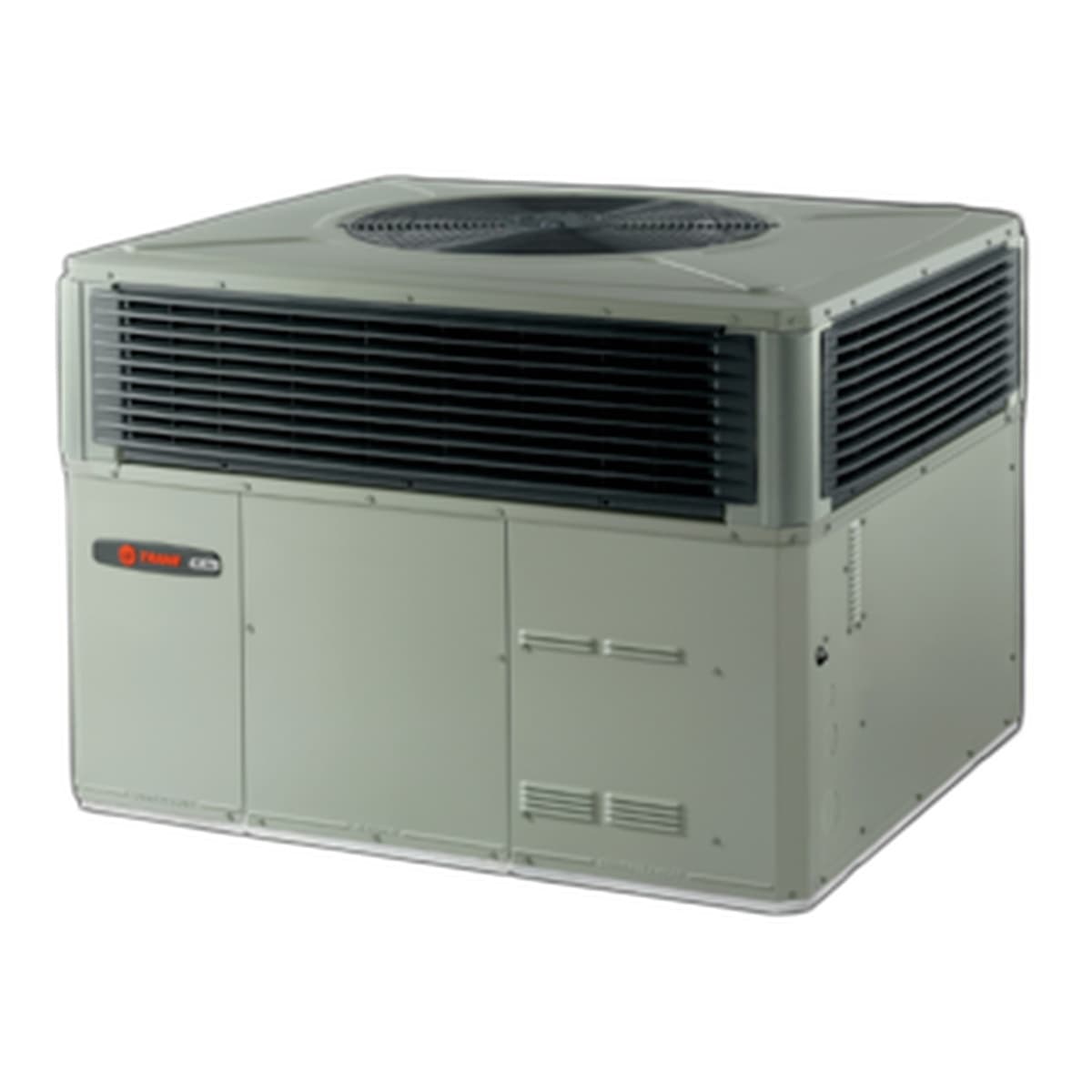

2 Ton Packaged Air Conditioner | Trane 14.3 SEER2, Single-Stage, R-454B | 5TCC4024A1000

Name: 2 Ton Packaged Air Conditioner | Trane 14.3 SEER2, Single-Stage, R-454B | 5TCC4024A1000
Brand: Trane
SKU: F001034
Price: 5953.99 USD
Availability: InStock

Trane

This 2 ton packaged air conditioner (14.3 SEER2, Single-Stage) is a self-contained cooling unit — compressor, coil and blower in one outdoor cabinet, connected to the building by ductwork alone. Full…

SKU: F001034MPN: 5TCC4024A1000

$5,953.99

Free shipping on orders over $75.00

30-day hassle-free returns

Secure checkout

Specifications

AHRI Reference #: 216574872
Airflow: 820 CFM
Coil Construction: 2 / 24
Coil Type: Spine-Fin
Compressor: Scroll
Cooling Capacity: 23,800 BTU/h
EER2: 11.0
Efficiency: 11.0 / 14.3
Electrical: 208–230/1/60
Fan Motor: Propeller
Max Fuse / Breaker: 25 A
Metering Device: Expansion Valve
Min. Circuit Ampacity: 16 A
Model Number: 5TCC4024A1000
Nominal Capacity: 2 Tons
Operating Weight: 362 lbs
Product Type: Packaged AC
Refrigerant: R-454B
Refrigerant Charge: 4.4
SEER2: 14.3
Series: 5TCC4
Shipping Weight: 436 lbs

This 2 ton packaged air conditioner (14.3 SEER2, Single-Stage) is a self-contained cooling unit — compressor, coil and blower in one outdoor cabinet, connected to the building by ductwork alone.

Full specifications and installation literature are published by Trane: Trane product information.

Questions on sizing or matching? Contact us before ordering and we'll confirm the right configuration for your system.
