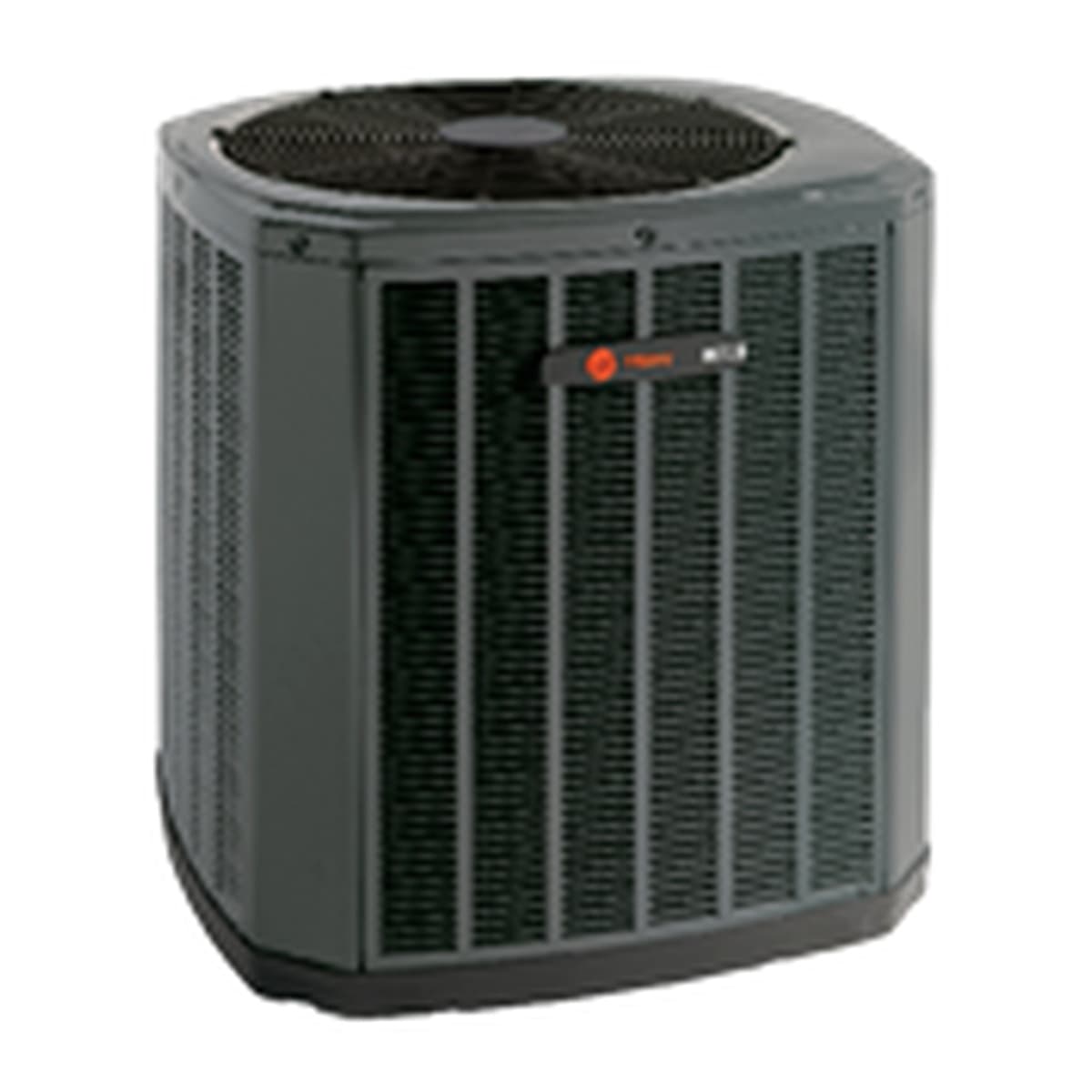

3.5 Ton Air Conditioner | Trane 14 Series Single-Stage, 208-230V Three-Phase, R-454B | 5TTA4042A3000

(0)

3.5 Ton Air Conditioner | Trane 14 Series Single-Stage, 208-230V Three-Phase, R-454B | 5TTA4042A3000

Name: 3.5 Ton Air Conditioner | Trane 14 Series Single-Stage, 208-230V Three-Phase, R-454B | 5TTA4042A3000
Brand: Trane
SKU: F000810
Price: 3285.99 USD
Availability: InStock

Trane

This 3.5 ton air conditioner (14 Series Single-Stage, 208-230V Three-Phase) is the outdoor half of a split cooling system, matched to an indoor coil and air handler or furnace sized with it. It…

SKU: F000810MPN: 5TTA4042A3000

$3,285.99

Free shipping on orders over $75.00

30-day hassle-free returns

Secure checkout

Specifications

Airflow: 4841 CFM
Cabinet Insulation: NO
Coil Construction: 1 - 24
Coil Type: SPINE FIN™
Compressor: CLIMATUFF®- SCROLL
Compressor Stage: 1-1
Electrical: 208/230/3/60
Fan Motor: PROPELLER
Line Connections: 7/8" x 5/16"
Max Fuse / Breaker: 25 A
Metering Device: EXPANSION VALVE
Min. Circuit Ampacity: 16.3 A
Model Number: 5TTA4042A3000
Nominal Capacity: 3.5 Tons
Operating Weight: 212 lbs
Product Type: Air Conditioners
Refrigerant: R-454B (A2L)
Refrigerant Charge: 5 LBS., 1 OZ
Series: 5TTA4-3
Shipping Weight: 246 lbs

This 3.5 ton air conditioner (14 Series Single-Stage, 208-230V Three-Phase) is the outdoor half of a split cooling system, matched to an indoor coil and air handler or furnace sized with it. It charges with R-454B, the lower-GWP refrigerant Trane's current residential line is built around.

Full specifications and installation literature are published by Trane: Trane product information.

Questions on sizing or matching? Contact us before ordering and we'll confirm the right configuration for your system.
