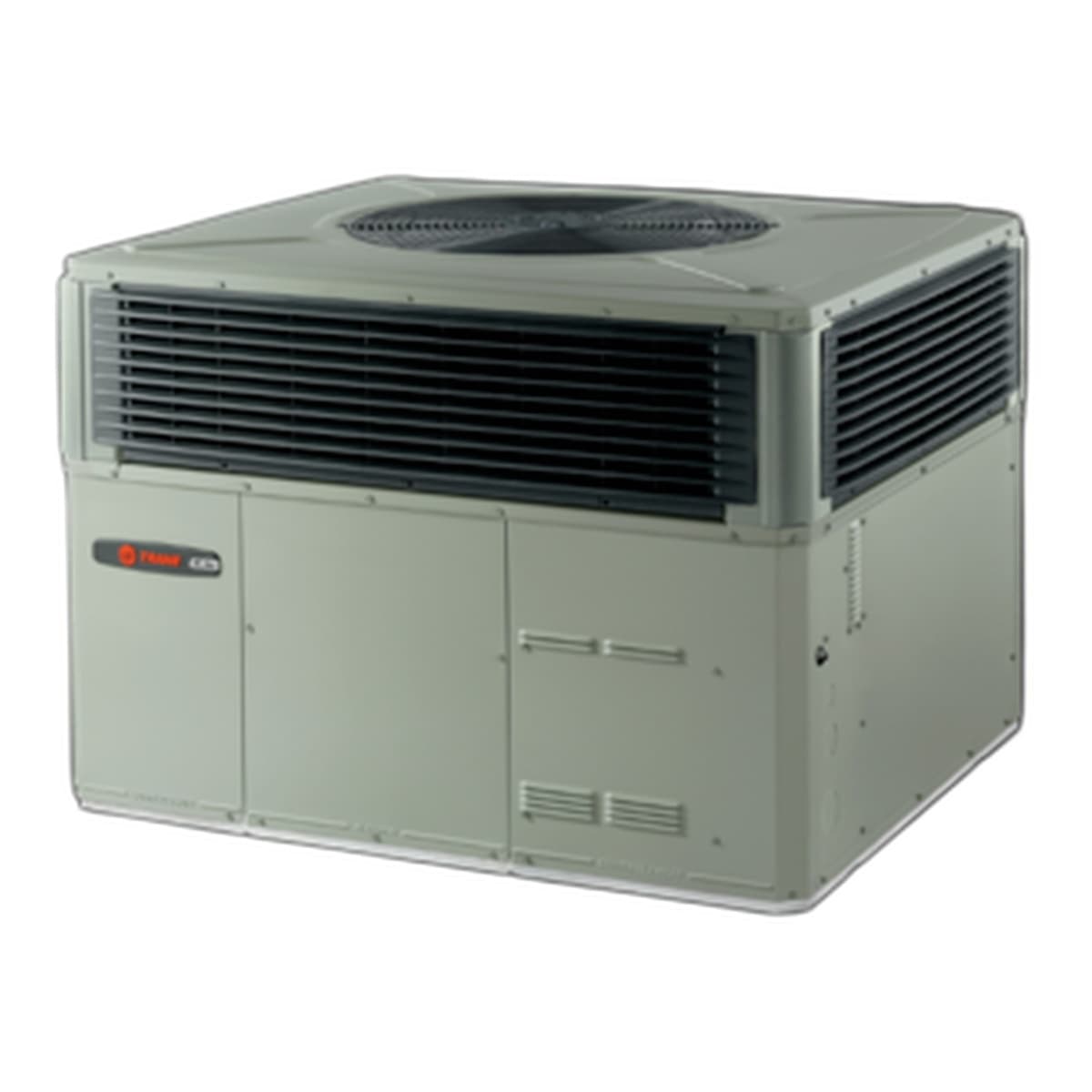

3.5 Ton Packaged Heat Pump | Trane 13.6 SEER2, Single-Stage, R-454B | 5WCC4042A1000

(0)

3.5 Ton Packaged Heat Pump | Trane 13.6 SEER2, Single-Stage, R-454B | 5WCC4042A1000

Name: 3.5 Ton Packaged Heat Pump | Trane 13.6 SEER2, Single-Stage, R-454B | 5WCC4042A1000
Brand: Trane
SKU: F001055
Price: 6898.99 USD
Availability: InStock

Trane

This 3.5 ton packaged heat pump (13.6 SEER2, Single-Stage) is a self-contained heat pump: heating and cooling from a single outdoor cabinet, with no indoor equipment beyond the ductwork. Full…

SKU: F001055MPN: 5WCC4042A1000

$6,898.99

Free shipping on orders over $75.00

30-day hassle-free returns

Secure checkout

Specifications

AHRI Reference #: 216574926
Airflow: 1438 CFM
Coil Construction: 2 / 24
Coil Type: Spine Fin
Compressor: Scroll
Cooling Capacity: 43,000 BTU/h
EER2: 11.0
Electrical: 208–230/1/60
Fan Motor: Propeller
HSPF2: 6.7
Max Fuse / Breaker: 45 A
Metering Device: Expansion Valve
Min. Circuit Ampacity: 31 A
Model Number: 5WCC4042A1000
Nominal Capacity: 3.5 Tons
Operating Weight: 450 lbs
Product Type: Packaged Heat Pumps
Refrigerant: R-454B
Refrigerant Charge: 7.13
SEER2: 13.6
Series: 5WCC4
Shipping Weight: 554 lbs

This 3.5 ton packaged heat pump (13.6 SEER2, Single-Stage) is a self-contained heat pump: heating and cooling from a single outdoor cabinet, with no indoor equipment beyond the ductwork.

Full specifications and installation literature are published by Trane: Trane product information.

Questions on sizing or matching? Contact us before ordering and we'll confirm the right configuration for your system.
