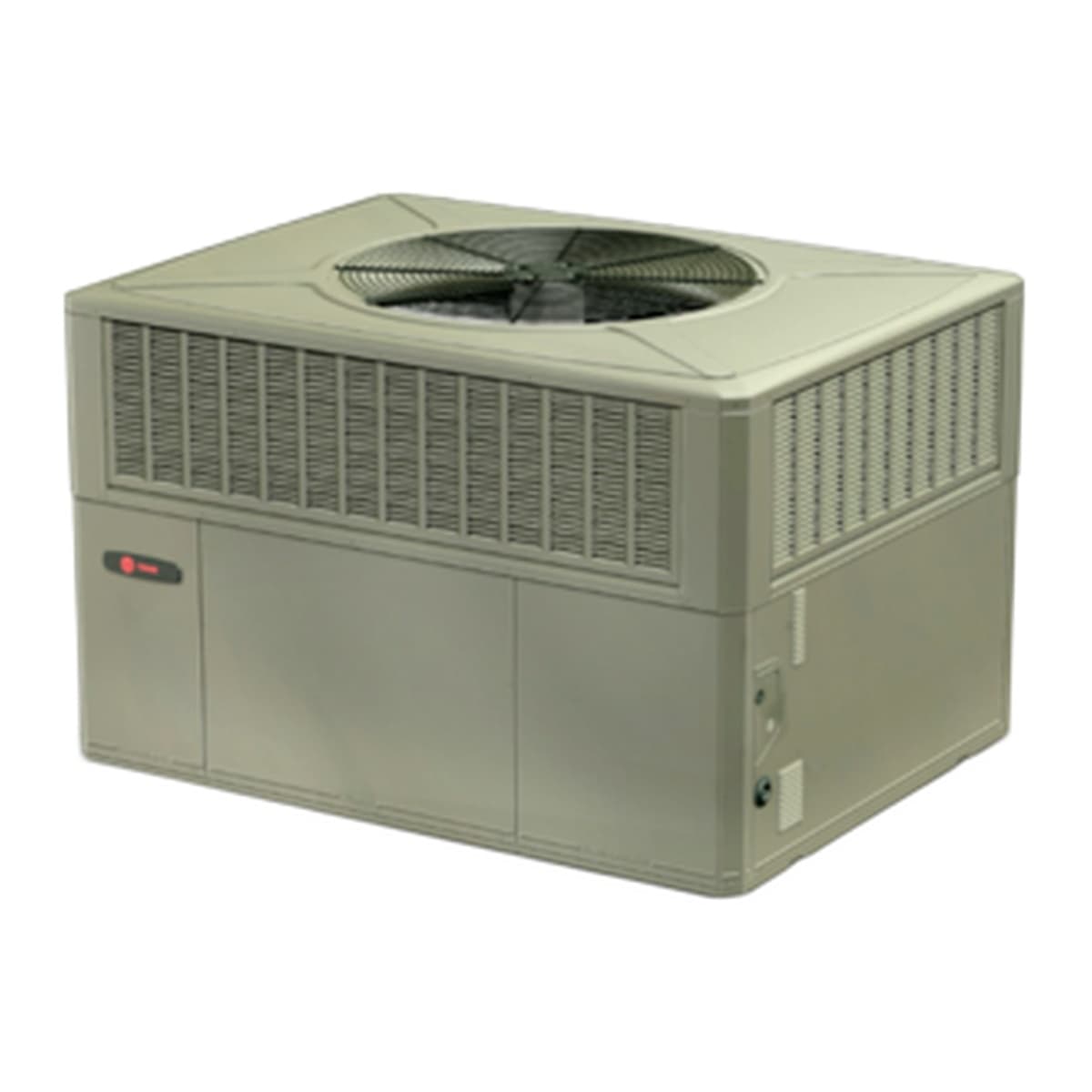

3 Ton Packaged Heat Pump | Trane 15.2 SEER2, Two-Stage, 208-230V Three-Phase, R-454B | 5WCZ5036A3000

(0)

3 Ton Packaged Heat Pump | Trane 15.2 SEER2, Two-Stage, 208-230V Three-Phase, R-454B | 5WCZ5036A3000

Name: 3 Ton Packaged Heat Pump | Trane 15.2 SEER2, Two-Stage, 208-230V Three-Phase, R-454B | 5WCZ5036A3000
Brand: Trane
SKU: F001046
Price: 7245.99 USD
Availability: InStock

Trane

This 3 ton packaged heat pump (15.2 SEER2, Two-Stage, 208-230V Three-Phase) is a self-contained heat pump: heating and cooling from a single outdoor cabinet, with no indoor equipment beyond the…

SKU: F001046MPN: 5WCZ5036A3000

$7,245.99

Free shipping on orders over $75.00

30-day hassle-free returns

Secure checkout

Specifications

AHRI Reference #: 216955832
Airflow: 3020 CFM
Coil Construction: 2 / 24
Coil Type: Spine Fin
Compressor: 2 Stage Scroll
Cooling Capacity: 35,000 BTU/h
EER2: 11.5
Electrical: 208–230/3/60
Fan Motor: Propeller
HSPF2: 7.2
Max Fuse / Breaker: 30 A
Metering Device: Expansion Valve
Min. Circuit Ampacity: 20 A
Model Number: 5WCZ5036A3000
Nominal Capacity: 3 Tons
Operating Weight: 373 lbs
Product Type: Packaged Heat Pumps
Refrigerant: R-454B
Refrigerant Charge: 7.1
SEER2: 15.2
Series: 5WCZ5-3
Shipping Weight: 469 lbs

This 3 ton packaged heat pump (15.2 SEER2, Two-Stage, 208-230V Three-Phase) is a self-contained heat pump: heating and cooling from a single outdoor cabinet, with no indoor equipment beyond the ductwork.

Full specifications and installation literature are published by Trane: Trane product information.

Questions on sizing or matching? Contact us before ordering and we'll confirm the right configuration for your system.
