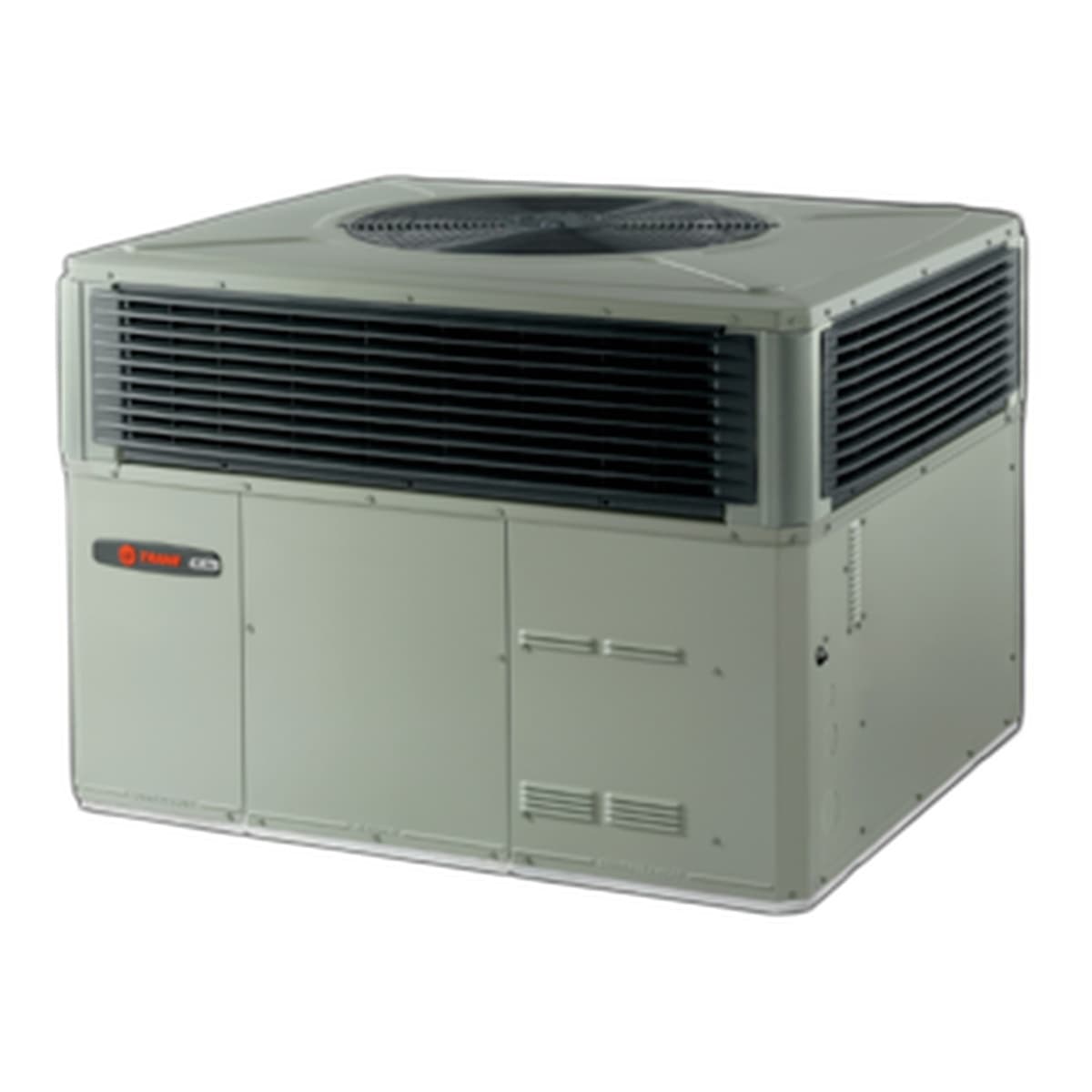

4 Ton Packaged Heat Pump | Trane 13.4 SEER2, Single-Stage, R-454B | 5WCC4048A1000

(0)

4 Ton Packaged Heat Pump | Trane 13.4 SEER2, Single-Stage, R-454B | 5WCC4048A1000

Name: 4 Ton Packaged Heat Pump | Trane 13.4 SEER2, Single-Stage, R-454B | 5WCC4048A1000
Brand: Trane
SKU: F001056
Price: 7129.99 USD
Availability: InStock

Trane

This 4 ton packaged heat pump (13.4 SEER2, Single-Stage) is a self-contained heat pump: heating and cooling from a single outdoor cabinet, with no indoor equipment beyond the ductwork. Full…

SKU: F001056MPN: 5WCC4048A1000

$7,129.99

Free shipping on orders over $75.00

30-day hassle-free returns

Secure checkout

Specifications

AHRI Reference #: 216574928
Airflow: 1655 CFM
Coil Construction: 2 / 24
Coil Type: Spine Fin
Compressor: Scroll
Cooling Capacity: 48,000 BTU/h
EER2: 11.0
Electrical: 208–230/1/60
Fan Motor: Propeller
HSPF2: 6.7
Max Fuse / Breaker: 50 A
Metering Device: Expansion Valve
Min. Circuit Ampacity: 36 A
Model Number: 5WCC4048A1000
Nominal Capacity: 4 Tons
Operating Weight: 431 lbs
Product Type: Packaged Heat Pumps
Refrigerant: R-454B
Refrigerant Charge: 7.00
SEER2: 13.4
Series: 5WCC4
Shipping Weight: 535 lbs

This 4 ton packaged heat pump (13.4 SEER2, Single-Stage) is a self-contained heat pump: heating and cooling from a single outdoor cabinet, with no indoor equipment beyond the ductwork.

Full specifications and installation literature are published by Trane: Trane product information.

Questions on sizing or matching? Contact us before ordering and we'll confirm the right configuration for your system.
