5 Ton Air Handler | Ruud Constant-Torque ECM, A2L Sensor, R-454B | RH1AY6024STANNJ

(0)

5 Ton Air Handler | Ruud Constant-Torque ECM, A2L Sensor, R-454B | RH1AY6024STANNJ

Name: 5 Ton Air Handler | Ruud Constant-Torque ECM, A2L Sensor, R-454B | RH1AY6024STANNJ
Brand: Ruud
SKU: F000156
Price: 2549.99 USD
Availability: OutOfStock

Ruud

SKU: F000156MPN: RH1AY6024STANNJ

$2,549.99

The Ruud RH1AY6024STANNJ is a 5-ton Endeavor Line air handler with a constant-torque ecm blower delivering single-stage airflow, engineered for R-454B (A2L) systems and fitted with a factory A2L…

This item is currently out of stock.

Free shipping on orders over $75.00

30-day hassle-free returns

Secure checkout

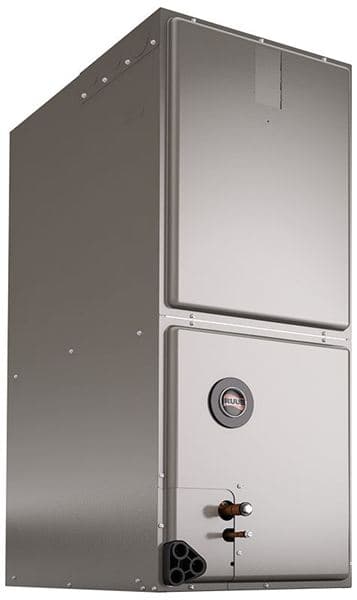

The Ruud RH1AY6024STANNJ is a 5-ton Endeavor Line air handler with a constant-torque ecm blower delivering single-stage airflow, engineered for R-454B (A2L) systems and fitted with a factory A2L refrigerant detection sensor. It is protected at a 15 A maximum overcurrent.

It pairs with Endeavor Line condensers and heat pumps to reach certified AHRI system ratings. A 4-way convertible cabinet installs upflow, downflow, or horizontal, and accepts field-installed auxiliary heat kits with integral breakers. The PlusOne A2L refrigerant sensor and a factory all-aluminum coil are standard. Backed by a 10-year conditional parts (with registration).

Manufacturer details: Ruud Endeavor RH1AY

Need the matched indoor unit? Add the MEP-RH1AY6024STANNJ to your cart, or contact our team for system-matched pricing and lead times.

Specifications

A2L Refrigerant Sensor: Yes
Airflow Stage: Single-Stage
Applications: Endeavor Line split-system indoor unit
Blower Motor: Constant-Torque ECM
Condensate Float Switch: Not equipped
Max Overcurrent Protection: 15 A
Model Number: RH1AY6024STANNJ
Nominal Capacity: 5 Ton
Product Type: Air Handler
Refrigerant Compatibility: R-454B (A2L)
Series: RH1AY (Endeavor Line)
Spec Sheet: View
Warranty: 10-Year Conditional Parts (with registration)

Specifications

A2L Refrigerant Sensor: Yes
Airflow Stage: Single-Stage
Applications: Endeavor Line split-system indoor unit
Blower Motor: Constant-Torque ECM
Condensate Float Switch: Not equipped
Max Overcurrent Protection: 15 A
Model Number: RH1AY6024STANNJ
Nominal Capacity: 5 Ton
Product Type: Air Handler
Refrigerant Compatibility: R-454B (A2L)
Series: RH1AY (Endeavor Line)
Spec Sheet: View
Warranty: 10-Year Conditional Parts (with registration)
