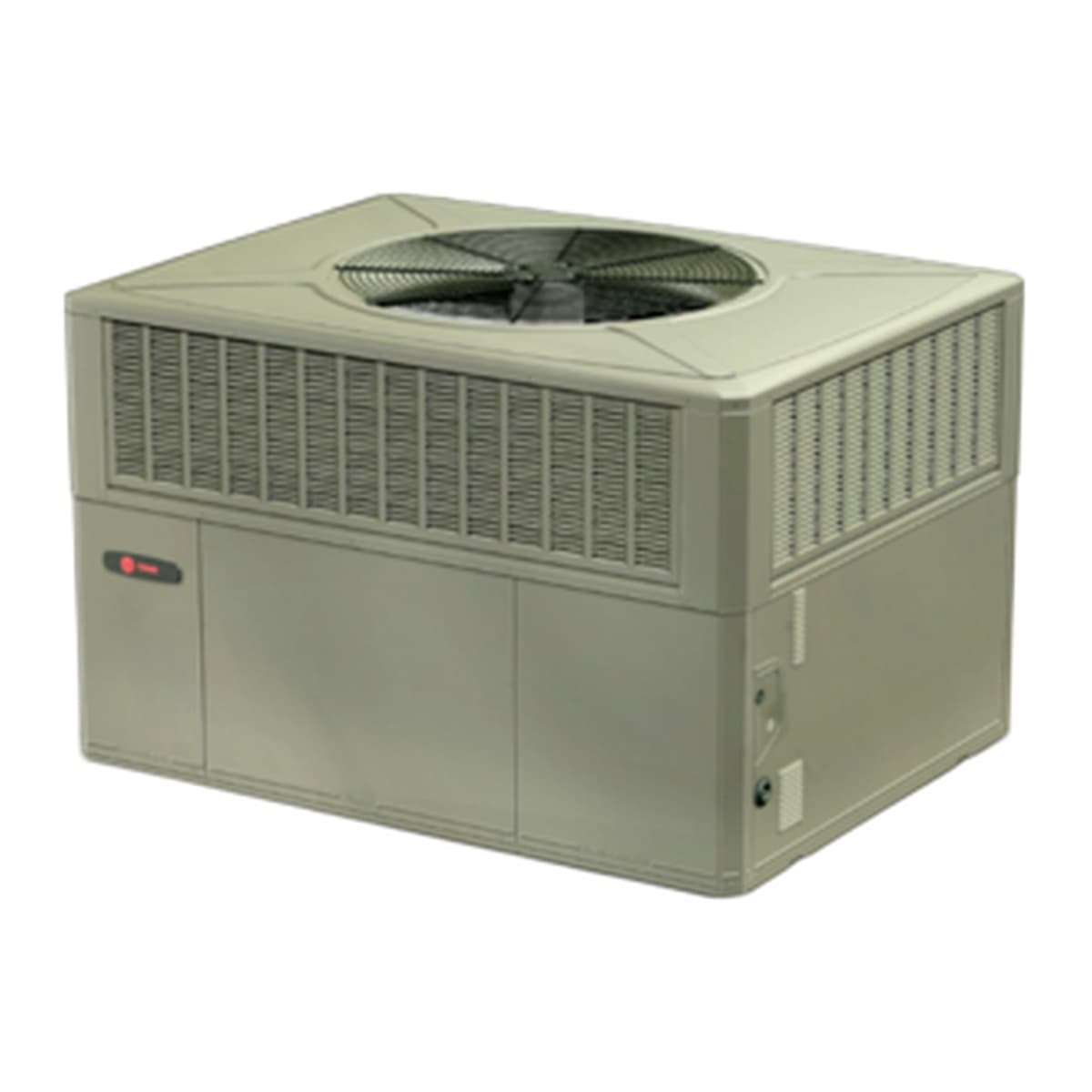

5 Ton Gas/Electric Package Unit | Trane 15.2 SEER2, Two-Stage, 460V Three-Phase, 115,000 BTU Heating, R-454B | 5YCZ5060A4115

(0)

5 Ton Gas/Electric Package Unit | Trane 15.2 SEER2, Two-Stage, 460V Three-Phase, 115,000 BTU Heating, R-454B | 5YCZ5060A4115

Name: 5 Ton Gas/Electric Package Unit | Trane 15.2 SEER2, Two-Stage, 460V Three-Phase, 115,000 BTU Heating, R-454B | 5YCZ5060A4115
Brand: Trane
SKU: F001013
Price: 9798.99 USD
Availability: InStock

Trane

This 5 ton gas/electric package unit (15.2 SEER2, Two-Stage, 460V Three-Phase, 115,000 BTU Heating) puts cooling and a gas furnace in a single outdoor cabinet, so no indoor equipment is needed.…

SKU: F001013MPN: 5YCZ5060A4115

$9,798.99

Free shipping on orders over $75.00

30-day hassle-free returns

Secure checkout

Specifications

AHRI Reference #: 216953862
Airflow: 1780 CFM
Coil Construction: 2/24
Coil Type: Spine Fin
Compressor: 2 Stage Scroll
Cooling Capacity: 58,000 BTU/h
EER2: 11.5
Efficiency: 11.5/15.2
Electrical: 460/3/60
Fan Motor: Propeller
Max Fuse / Breaker: 20/20 A
Metering Device: Expansion Valve
Min. Circuit Ampacity: 17 A
Model Number: 5YCZ5060A4115
Nominal Capacity: 5 Tons
Product Type: Packaged Gas/AC
Refrigerant: R-454B
Refrigerant Charge: 9.8
SEER2: 15.2
Series: 5YCZ5-4

This 5 ton gas/electric package unit (15.2 SEER2, Two-Stage, 460V Three-Phase, 115,000 BTU Heating) puts cooling and a gas furnace in a single outdoor cabinet, so no indoor equipment is needed. Typical on slab and rooftop installations where there is no space for a separate furnace and coil.

Full specifications and installation literature are published by Trane: Trane product information.

Questions on sizing or matching? Contact us before ordering and we'll confirm the right configuration for your system.
