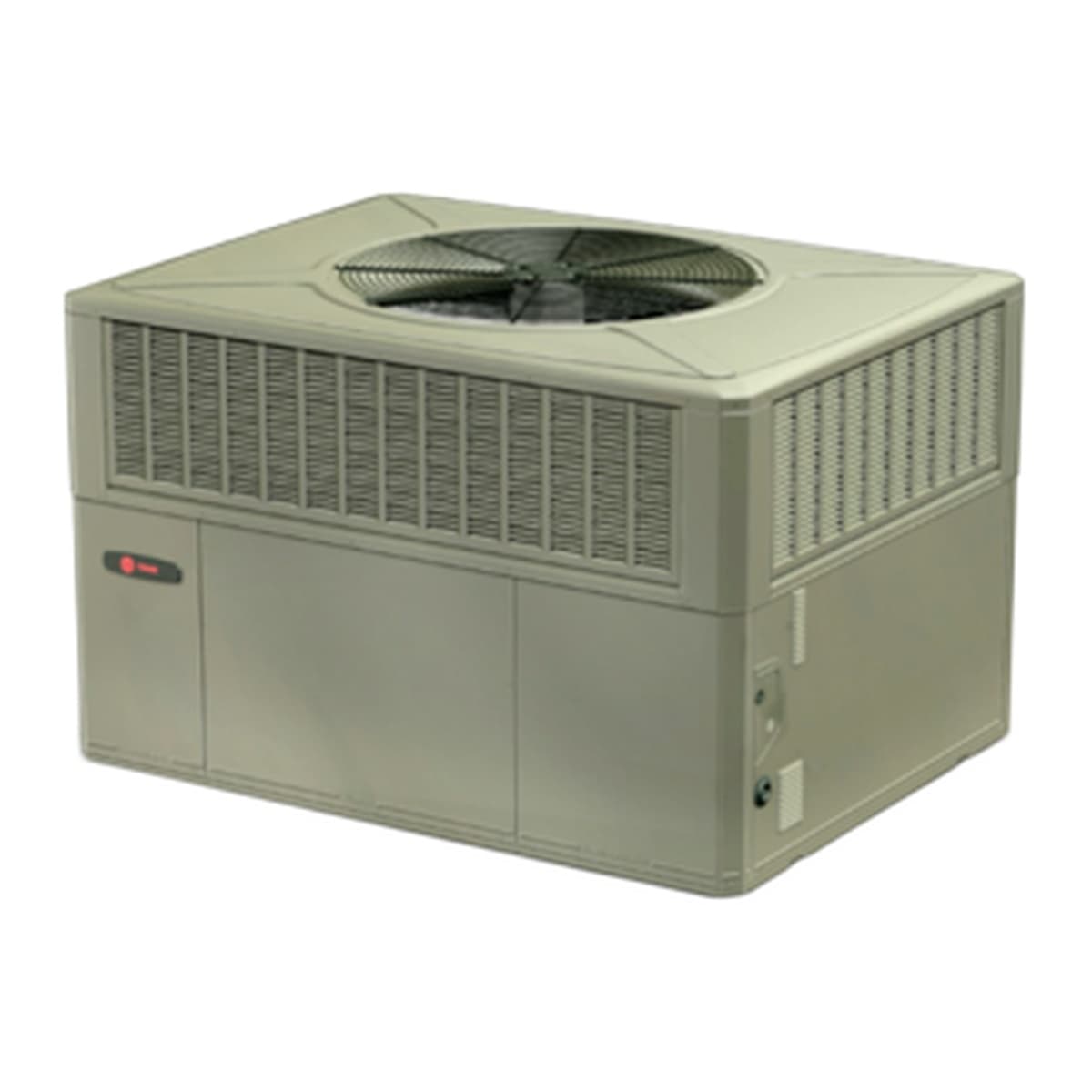

5 Ton Packaged Heat Pump | Trane 15.2 SEER2, Two-Stage, 460V Three-Phase, R-454B | 5WCZ5060A4000

(0)

5 Ton Packaged Heat Pump | Trane 15.2 SEER2, Two-Stage, 460V Three-Phase, R-454B | 5WCZ5060A4000

Name: 5 Ton Packaged Heat Pump | Trane 15.2 SEER2, Two-Stage, 460V Three-Phase, R-454B | 5WCZ5060A4000
Brand: Trane
SKU: F001051
Price: 8780.99 USD
Availability: InStock

Trane

This 5 ton packaged heat pump (15.2 SEER2, Two-Stage, 460V Three-Phase) is a self-contained heat pump: heating and cooling from a single outdoor cabinet, with no indoor equipment beyond the ductwork.…

SKU: F001051MPN: 5WCZ5060A4000

$8,780.99

Free shipping on orders over $75.00

30-day hassle-free returns

Secure checkout

Specifications

AHRI Reference #: 216955844
Airflow: 5500 CFM
Coil Construction: 2 / 24
Coil Type: Spine Fin
Compressor: 2 Stage Scroll
Cooling Capacity: 58,000 BTU/h
EER2: 11.5
Electrical: 460 / 3 / 60
Fan Motor: Propeller
HSPF2: 7.2
Max Fuse / Breaker: 20 A
Metering Device: Expansion Valve
Min. Circuit Ampacity: 17 A
Model Number: 5WCZ5060A4000
Nominal Capacity: 5 Tons
Operating Weight: 516 lbs
Product Type: Packaged Heat Pumps
Refrigerant: R-454B
Refrigerant Charge: 9.1
SEER2: 15.2
Series: 5WCZ5-4
Shipping Weight: 644 lbs

This 5 ton packaged heat pump (15.2 SEER2, Two-Stage, 460V Three-Phase) is a self-contained heat pump: heating and cooling from a single outdoor cabinet, with no indoor equipment beyond the ductwork.

Full specifications and installation literature are published by Trane: Trane product information.

Questions on sizing or matching? Contact us before ordering and we'll confirm the right configuration for your system.
