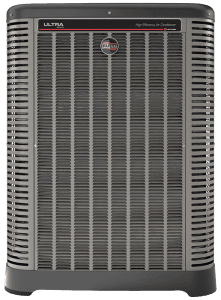

5 Ton Air Conditioner | Ruud 19 SEER2 Variable-Speed, R-454B | UA19AY60AJVCA

The Ruud UA19AY60AJVCA is a 5-ton Endeavor Line air conditioner built on the next-generation R-454B (A2L) refrigerant, delivering up to 19 SEER2 cooling efficiency from a variable-speed (iM inverter) compressor. It draws 30 A minimum circuit ampacity on a 50 A max breaker (208-230V / 1-phase / 60Hz), with 3/8" liquid and 7/8" suction line connections for a straightforward line-set match.

Part of Ruud's low-GWP Endeavor Line, it pairs with Endeavor air handlers, coils, and gas furnaces to hit certified AHRI system ratings. The inverter-driven compressor modulates output continuously to hold tight temperature and humidity, and EcoNet connectivity with PlusOne Bluetooth diagnostics streamlines setup and service. It is ENERGY STAR qualified, runs as quiet as 57 dB, and carries an on-board refrigerant detection system. Backed by a 10-year conditional unit replacement + 10-year parts (with registration).

Manufacturer details: Ruud Endeavor UA19AY

Ready to spec this unit? Add the MEP-UA19AY60AJVCA to your cart, or contact our team for volume pricing, matched air-handler/coil packages, and lead times.
